17.5M High-Low Board Semi-Trailer

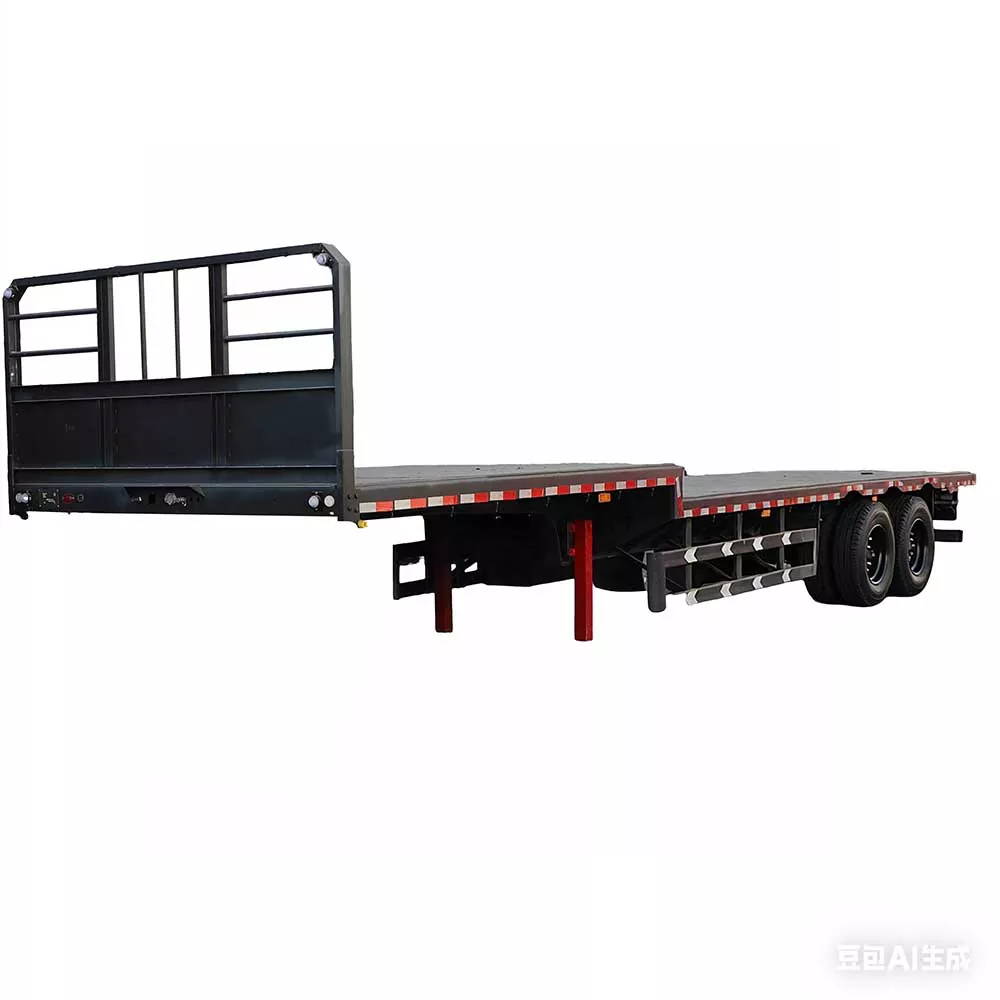

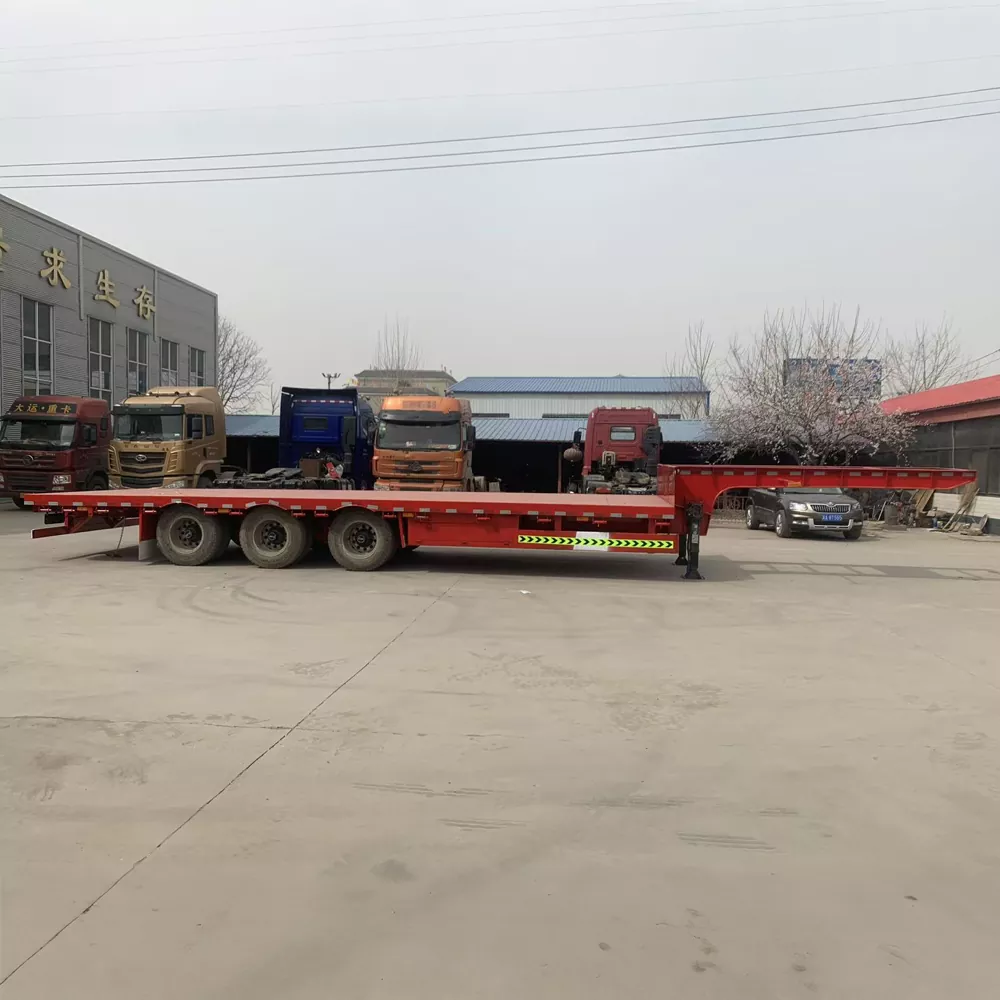

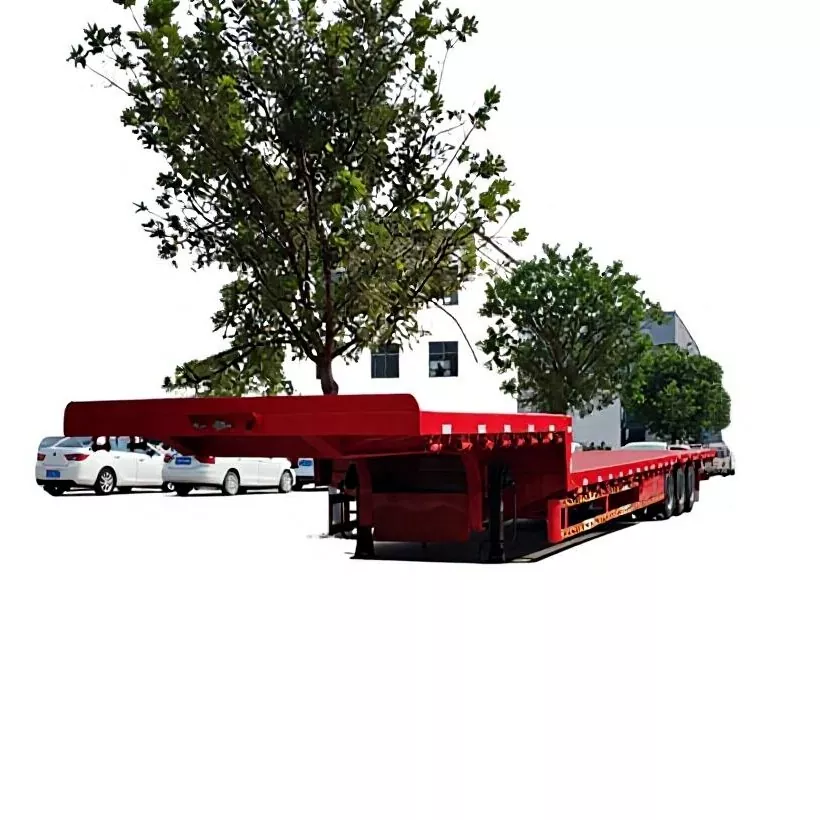

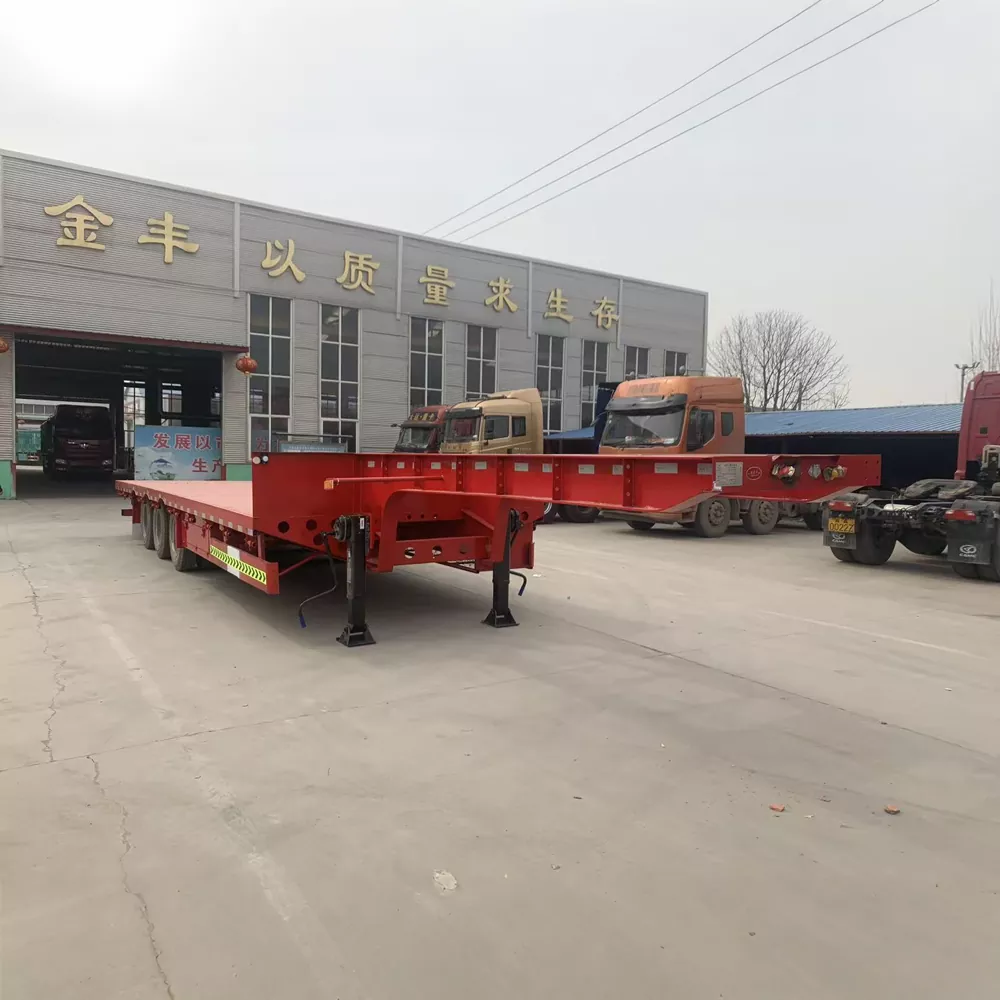

China Jinfeng 17.5M High-Low Board Semi-Trailer Is A Professional Transportation Equipment Specially Built For Large-Volume And Oversized Cargo Transportation. The Whole Vehicle Has A Loading Surface Of 17.5 Meters In Length And 3 Meters In Width, Adopting A Stepped High-Low Board Structure: The High Board Section Is About 3.5-4.5 Meters Long And About 1.6 Meters Above The Ground, Suitable For Loading Heavy Machinery And Equipment And Other High Value-Added Cargo; The Low Board Section Is As Long As 13-14 Meters And Only About 1.2 Meters Above The Ground, With A Lower Center Of Gravity And Stable Driving, Making It More Convenient To Load And Unload Over-Height And Over-Length Cargo. The High Board And The Low Board Are Connected By A Smooth Transition Ramp, Making Loading And Unloading Operations Smooth And Efficient, Meeting The Combined Loading Needs Of Cargo Of Different Heights And Making Space Utilization More Flexible. The Whole Vehicle Has A Large Loading Area With A Loading Capacity Of About 140 Cubic Meters, Realizing Large-Volume Transportation, Nearly Twice That Of A 13-Meter Model. The Single-Trip Capacity Is Significantly Improved, Effectively Reducing Unit Transportation Cost And Improving Operating Revenue, Making It A Strong Choice For Efficient Logistics Transportation. The Frame Is Made Of High-Quality High-Strength Steel Plates, With Thickened Main Beams Welded With Multiple Cross Beams, Featuring High Strength And Strong Torsion And Load Resistance. The Checkered Floor Is Anti-Slip And Wear-Resistant, And With Devices Such As Tie-Down Winches, Cargo Is Fastened More Securely. It Is Equipped With High-Quality Axles, Suspension System And Braking Device, Ensuring Safe And Stable Driving Under Full Load. With Excellent Workmanship And Fine Paint, It Is Widely Applicable To Long-Distance Transportation Of All Kinds Of Oversized Cargo Such As Machinery And Equipment, Engineering Building Materials, Steel Pipes And Plates, And Bulk Cargo, And Is Deeply Trusted And Praised By Customers, With High Cost Performance And Outstanding Quality.

Precautions

1. When Loading Cargo, The Load On The High Board And The Low Board Should Be Reasonably Distributed. Heavy Cargo Should Be Placed On The Low Board As Much As Possible To Keep The Front And Rear Axle Loads Even And Avoid Eccentric Loading And Overloading, So As To Ensure Driving Safety.

2. The Total Mass Of The Whole Vehicle Shall Not Exceed The Limit Set By National Regulations (The Total Mass Of A Six-Axle Vehicle Shall Not Exceed 49 Tons). Overloading Is Strictly Prohibited To Avoid Damaging The Frame, Suspension And Other Structures.

3.  Before Loading Over-Height Cargo, The Total Height Of The Cargo And The Vehicle Must Be Calculated. Generally, The Cargo Height On The Low Board Shall Not Exceed 2.8 Meters And That On The High Board Shall Not Exceed 2.4 Meters, So As To Ensure Compliance With Road Height Limit Requirements And Pass Through Height-Limited Sections Safely.

4. Cargo Must Be Firmly Tied And Fixed With Tools Such As Tie-Down Winches And Steel Wire Ropes To Prevent Cargo From Shifting During Transportation And Causing Safety Hazards.

5.  During Driving, Maintain A Reasonable Speed And Avoid Sudden Braking And Sharp Turns To Prevent Cargo From Shaking And Sliding Sideways.

6. Regularly Inspect Key Parts Such As Frame Welds, Axles, Tire Pressure, Braking System And Lights. If Any Abnormality Is Found, Repair And Maintain In Time. Driving With Defects Is Strictly Prohibited, So As To Extend The Service Life Of The Vehicle And Ensure Long-Term, Efficient And Safe Operation With Guaranteed Driving Safety.

Production Process

China Jinfeng 17.5M High-Low Board Semi-Trailer Goes Through Multiple Strict Processes From Material Selection To Factory Delivery, With Strict Quality Control At Every Step.

Step 1, Material Selection And Cutting: High-Quality High-Strength Steel Plates Are Selected And Precisely Cut By CNC Cutting To Ensure The Dimensional Accuracy Of Each Component.

Step 2, Fitting And Welding: Main Structures Such As Main Beams And Cross Beams Are Assembled And Positioned, And Welded With Multiple Passes Of CO2 Gas Shielded Welding. The Welds Are Even And Full, Fully Ensuring The Strength Of The Frame.

Step 3, Assembly And Forming: The High Board, The Low Board And The Transition Ramp Are Welded And Spliced Into The Main Frame.

Step 4, Floor Laying: The Checkered Floor Is Laid And Accessories Such As Side Beams And Tie-Down Winches Are Welded.

Step 5, Sandblasting And Painting: After Shot Blasting And Rust Removal Of The Whole Vehicle, Anti-Rust Primer And Topcoat Are Sprayed To Improve Anti-Corrosion Performance And Appearance Quality.

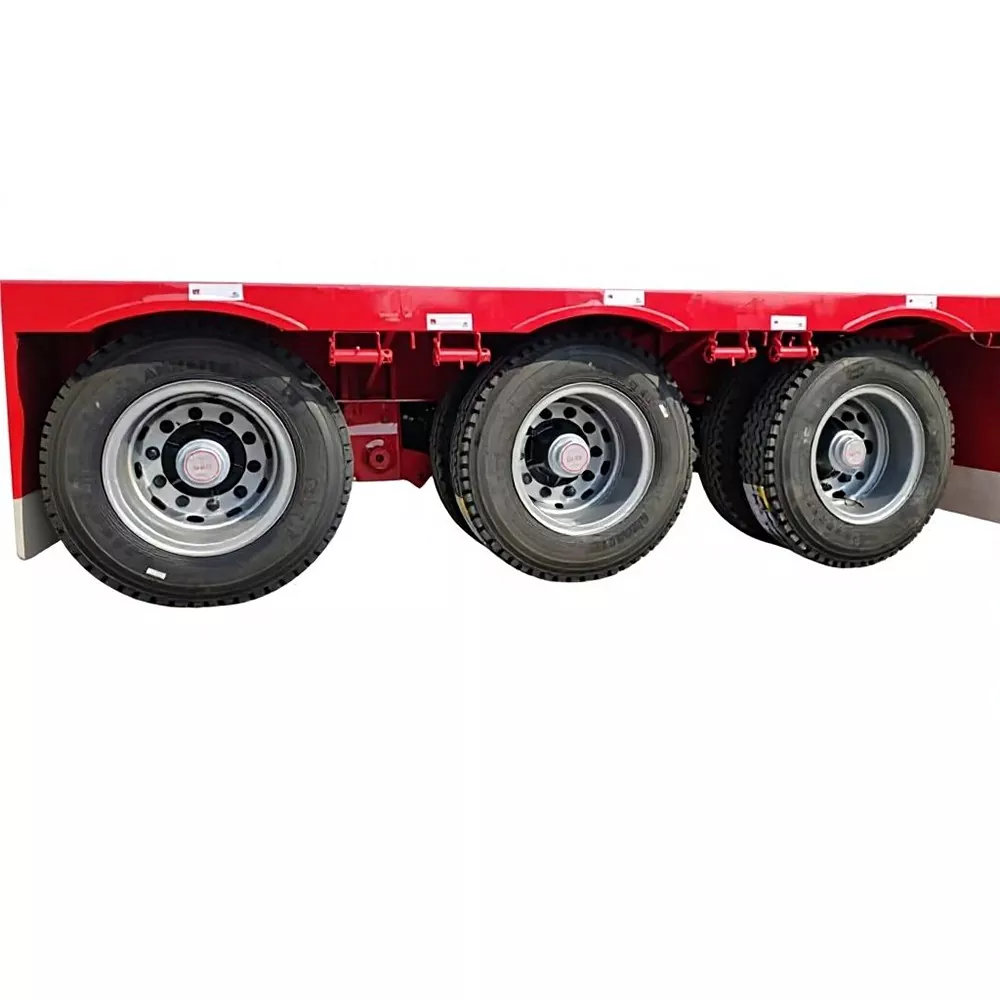

Step 6, Assembly And Commissioning: Components Such As Axles, Suspension, Landing Legs, Braking System And Lights Are Installed And Tested One By One. Finally, After Passing Quality Inspection, The Vehicle Is Delivered From The Factory, Ensuring That Every Jinfeng Semi-Trailer Is Reliable In Quality And Stable In Performance, So That Users Can Buy With Confidence, Use With Peace Of Mind And Earn Money With Ease. It Is A Trustworthy Transportation Partner.
