Durable Side-tipping Dump Semi-trailer for Heavy-Duty Transport

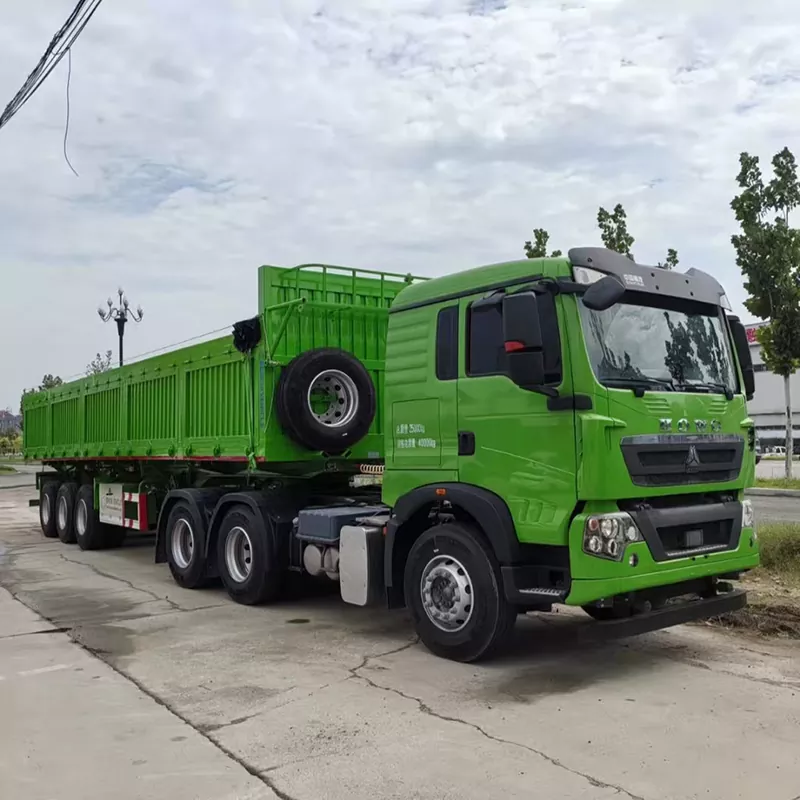

The Side-tipping Dump Semi-trailer is a specialized heavy-duty transport solution engineered for efficient unloading of bulk materials such as sand, gravel, coal, ore, grain, and demolition waste. Unlike traditional rear-dump trailers, this design allows the entire trailer body to tilt sideways, enabling rapid and controlled discharge without requiring the truck to maneuver into tight spaces. For operators across mining, construction, agriculture, and large-scale logistics, the side-tipping mechanism significantly reduces cycle times and improves job site safety. Our Side-tipping Dump Semi-trailer series includes products such as Double-Side-Tipping Dump Semi-Trailer, Single-Side-Tipping Dump Semi-Trailer, and so on.

Key Structural and Mechanical Features

Jinfeng's side-tipping dump semi-trailer integrates advanced engineering with durable materials to deliver reliable performance under extreme conditions. The chassis is constructed from high-strength low-alloy (HSLA) steel, offering an excellent strength-to-weight ratio while resisting fatigue from constant heavy loads. The tipping system relies on a multi-stage hydraulic cylinder setup, typically front-mounted or positioned beneath the body, providing a smooth and stable lift up to 45 degrees. Reinforced longitudinal beams and cross members prevent twisting during the tipping cycle, and the frame's design distributes stress evenly to prolong service life.

Hydraulic System and Tipping Control

The hydraulic circuit includes a PTO-driven pump, high-pressure hoses with burst protection, and a centralized control block that allows the driver to operate the tipping function from the cab or a remote panel. A double-acting cylinder design ensures both lifting and lowering are precisely controlled, preventing slamming that could damage the structure or payload. Jinfeng uses internationally certified seals and chrome-plated rods to minimize leakage and ensure consistent performance even in dusty or wet environments. An emergency stop valve is standard, providing immediate cessation of movement if required.

Body Construction and Material Options

The cargo body is available in rectangular or trapezoidal cross-sections, with thicknesses ranging from 4mm to 8mm depending on the intended material density. Standard steel grades include Q345B and Hardox wear-resistant plate for high-abrasion applications. To suit different cargo types, Jinfeng offers optional body configurations such as no-roof, canvas cover, roll-over tarp systems, and hydraulic top lids. The side wall reinforcement design uses boxed hat-section profiles for rigidity without adding excessive weight, enabling compliance with regional axle load regulations.
