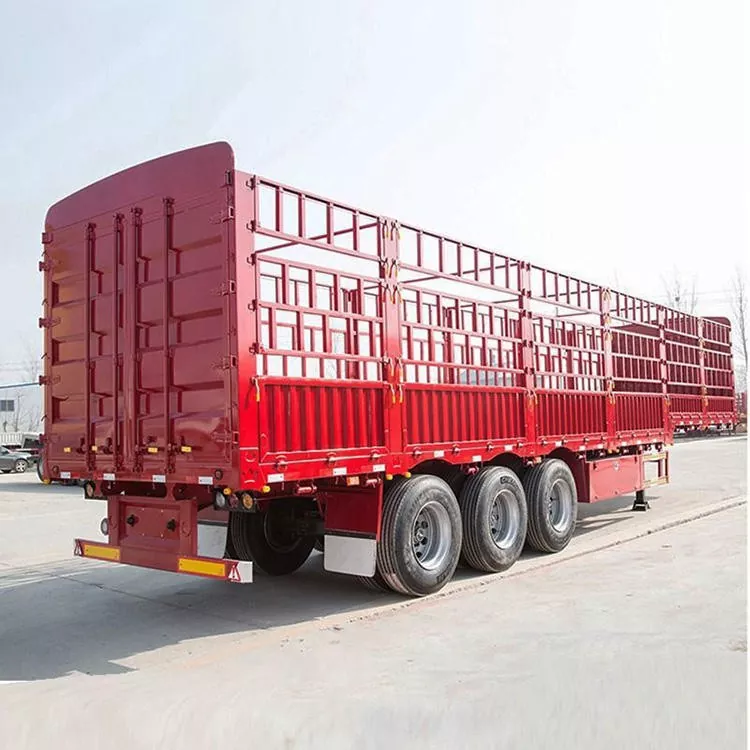

Wholesale Straight-beam Stake Fence Semi-trailer with Robust Design for Heavy Loads

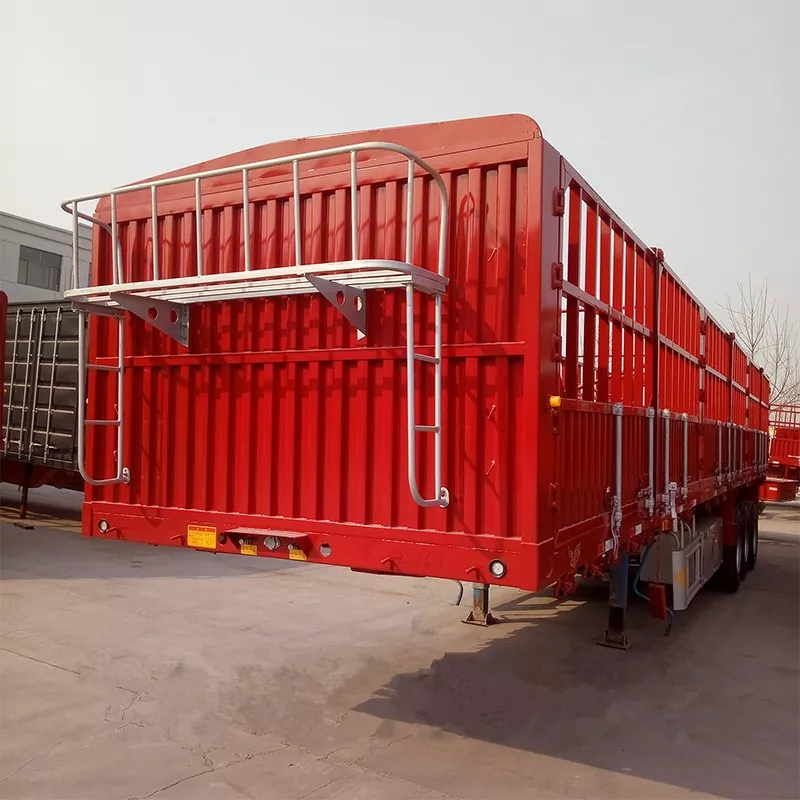

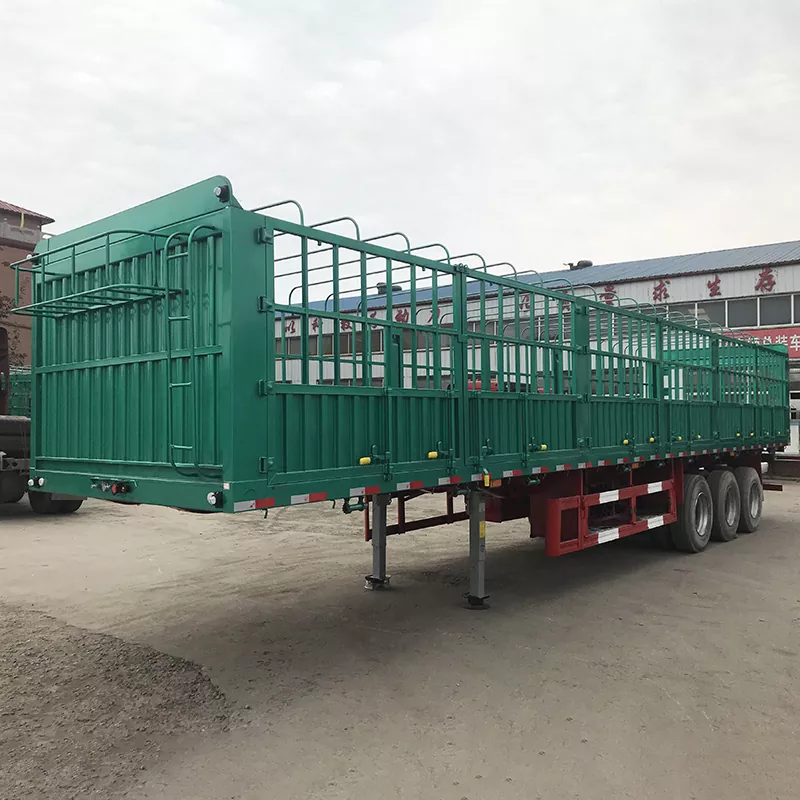

The Straight-beam Stake/Fence Semi-trailer is a purpose-built transport solution designed for carrying long, irregular, or bundled cargo such as timber, steel pipes, fencing materials, and agricultural produce. Its straight-beam chassis provides exceptional rigidity and load distribution, while the stake and fence side panels ensure cargo stays secure during transit. Jinfeng has refined this trailer type over decades of engineering, producing a model that balances lightweight construction with heavy-duty durability. Whether you operate in forestry, construction, or agriculture, a well-specified stake semi-trailer can dramatically improve logistics efficiency and reduce per-ton transport costs. Our Straight-beam Stake/Fence Semi-trailer series includes products such as Heavy-Duty High-Density Stake Semi-Trailer, High-Side Stake/Fence Semi-Trailer, etc.

Core Structural Design

The backbone of the straight-beam stake/fence semi-trailer is its main beam, which runs uninterrupted from the gooseneck to the rear bumper. Unlike drop-deck or step-deck trailers, the straight-beam profile maintains a constant height, simplifying loading from the side with forklifts or cranes. Jinfeng fabricates these main beams from high-strength Q345B or Q460C steel, using automated submerged arc welding to produce a full-penetration joint. The cross members are pressed from channel steel and spaced optimally to support decking loads without adding unnecessary weight. The result is a trailer with a concentrated load capacity often exceeding 40 tons, depending on axle configuration.

The stake and fence system consists of removable or foldable vertical posts (stakes) fitted into sockets along the side rails. Horizontal fence panels, typically made from steel tube or extruded aluminum, slide into place between the stakes. This modularity lets operators convert the trailer from a flatbed to a high-sided cargo carrier in minutes. Jinfeng offers fixed stake pockets as standard, with optional twist-lock or spring-loaded locking mechanisms that reduce rattle and speed up configuration changes. The side protection meets or exceeds ECE R73 lateral protection regulations, and all edges are deburred and painted to prevent damage to cargo and operatives.
