Straight-Beam Front-Lift Dump Semi-Trailer

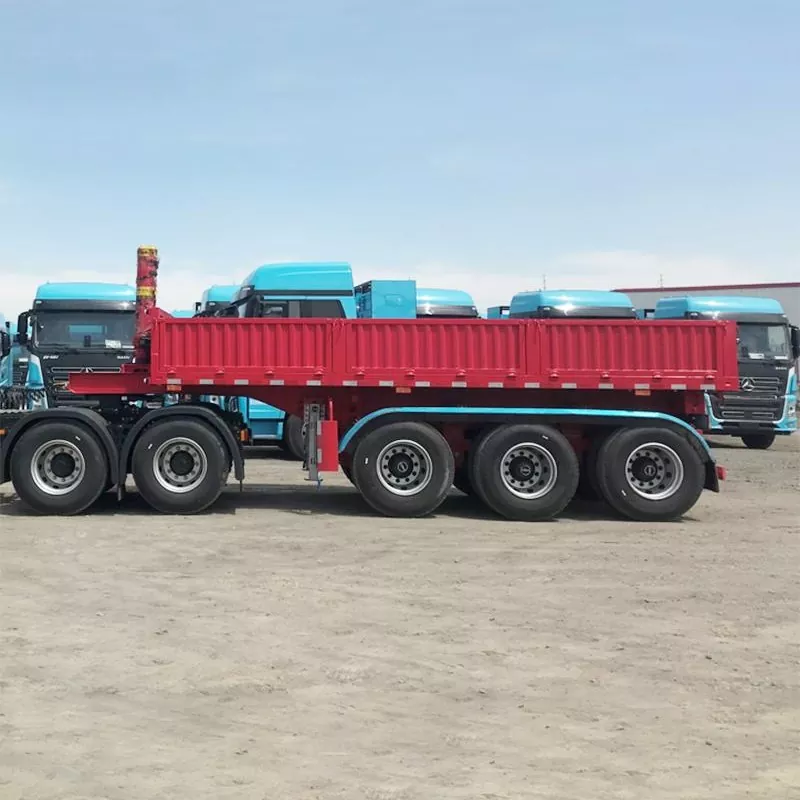

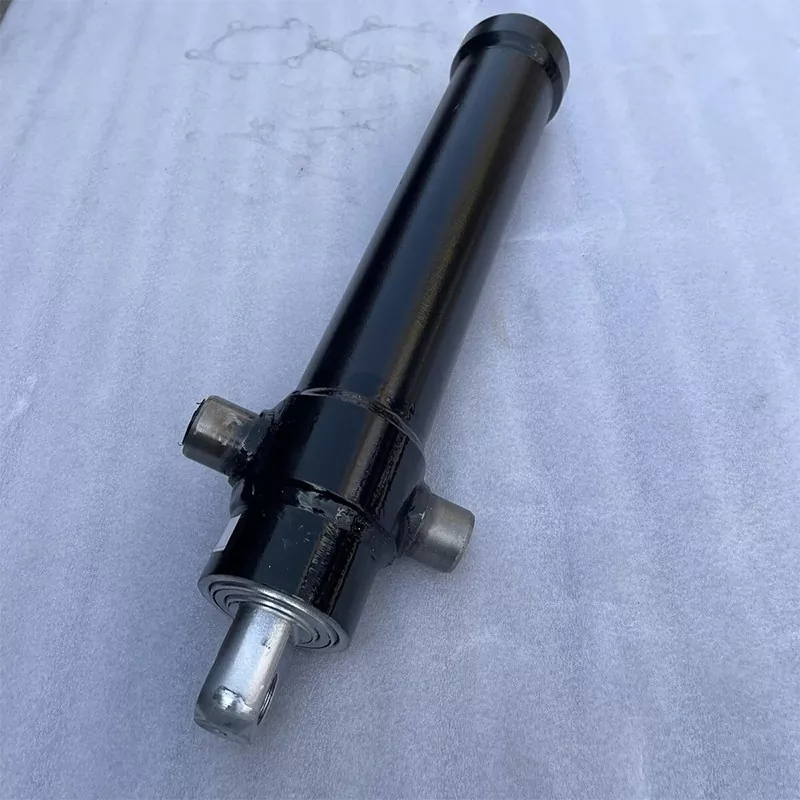

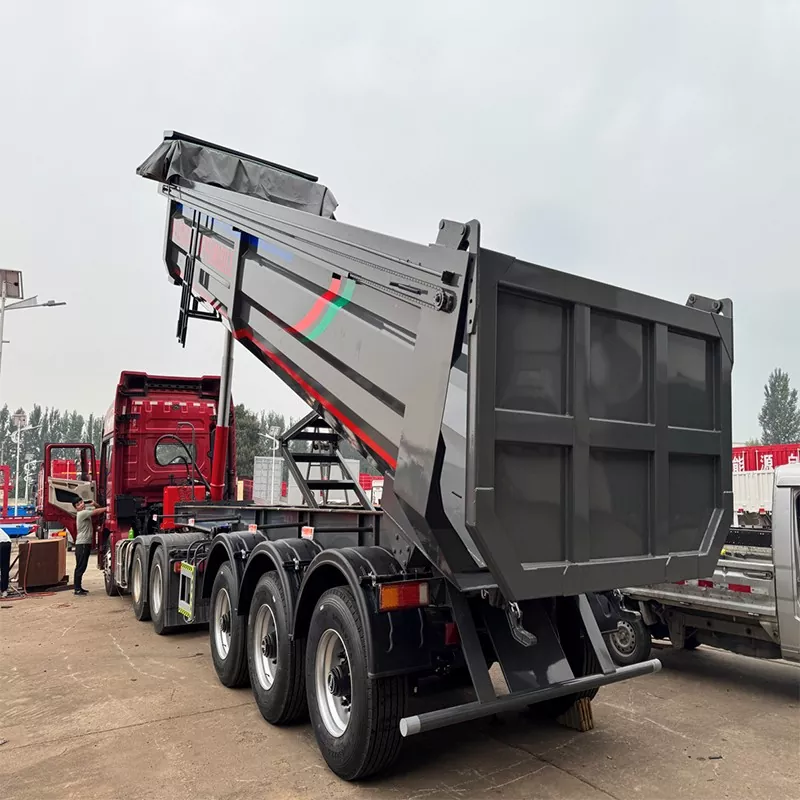

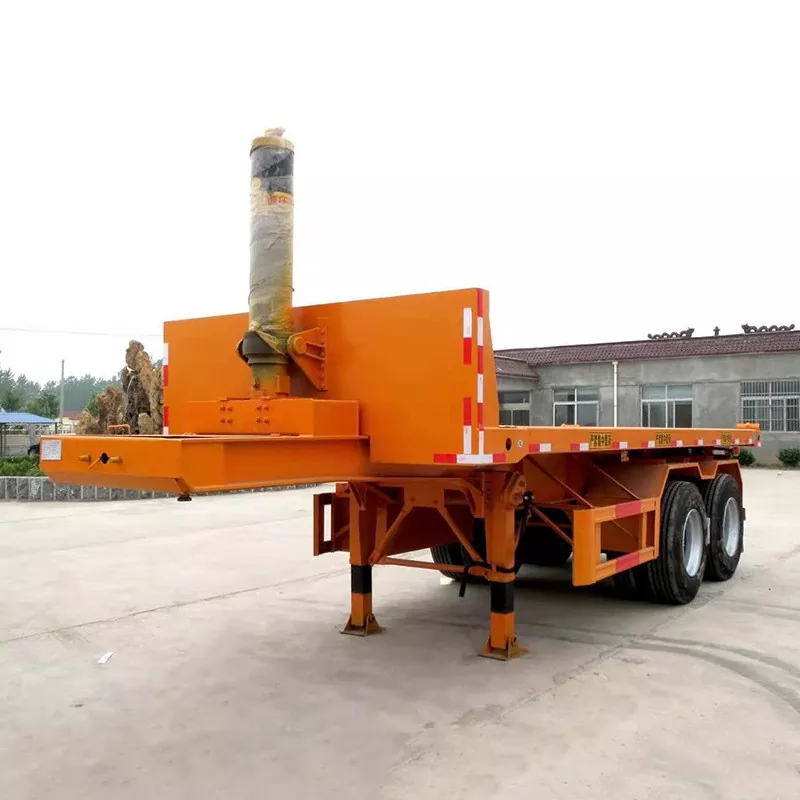

Jinfeng China Straight-Beam Front-Lift Dump Semi-Trailer is an efficient operation equipment specially built for heavy-duty bulk material transportation. It core integrates three key advantages: front-mounted push, straight beam frame and lifting dumping, balancing performance and compliance. The product is made of Q355 high-strength steel, and the straight beam frame is manufactured by automatic submerged arc welding process. The straight longitudinal beam design ensures uniform force, effectively improves load-bearing stability and avoids heavy-load deformation. It is suitable for a rated load capacity of 33200-33800Kg, and the curb weight is controlled at 6200-6800Kg, achieving the dual goals of compliant weight reduction and efficient loading. The front-mounted push hydraulic system adopts well-known brand oil cylinders and valve groups, with excellent sealing performance and strong anti-pollution ability. The lifting time is ≤40s and the lifting angle is ≥48°, which is easy to operate and can unload completely, effectively reducing material residue and greatly improving loading and unloading efficiency, suitable for the transportation needs of various bulk materials.

Application Scenarios

Jinfeng China Straight Beam Front-Lift Dump Semi-Trailer has a wide range of application scenarios, mainly suitable for various scenarios such as construction sites, mining, ports and terminals, sand and gravel yards, and infrastructure projects. It can efficiently transport bulk materials such as sand, gravel, ore, coal and construction waste, and meet both short-distance and medium-to-long-distance highway transportation needs. Whether in complex and bumpy mining road conditions or flat highway transportation, it can maintain a stable operation state, adapt to multi-axle balanced driving, and has a reliable braking system, which can show excellent performance in different working conditions. At the same time, it can customize the cargo compartment size, tire specifications and other configurations according to the specific needs of purchasers, flexibly match the personalized needs of different transportation scenarios, and adapt to various procurement models such as bulk purchase and centralized purchase.

Why Choose Us

Choose Jinfeng China, all because of its profound brand heritage and outstanding product strength. Jinfeng China has been deeply engaged in the machinery manufacturing field for decades, and has built a complete system integrating R&D, production, sales and after-sales service with the qualification of high-tech enterprise, the accumulation of more than 99 patents and the reputation of Class A tax credit, showing the craftsmanship and responsibility of a large factory. Each straight beam front-top dump semi-trailer strictly abides by strict standards such as GB1589-2016 and EN 474-6:2022, and has gone through layers of testing and tempering to build a quality monument, allowing every purchaser to entrust with confidence. Compared with similar products, our straight beam frame adopts a through-beam reinforced structure, which is as solid as a rock and durable; the front-mounted push system is stable and efficient with low failure rate, which can further reduce your later maintenance costs, making it more worry-free and labor-saving. We also provide full-process intimate services with a professional attitude, including accurate pre-sales consultation, customized in-sales adaptation and rapid after-sales response, comprehensively solving various problems in procurement and use, and relieving your worries. In addition, supported by flexible and diverse procurement models, spot supply and bulk purchase can enjoy exclusive benefits, helping you control costs, increase efficiency and empower operations. Jinfeng China Straight Beam Front-Top Dump Semi-Trailer is indeed the preferred choice for purchasing heavy-duty dump equipment, and we will go to a new development journey with you.
