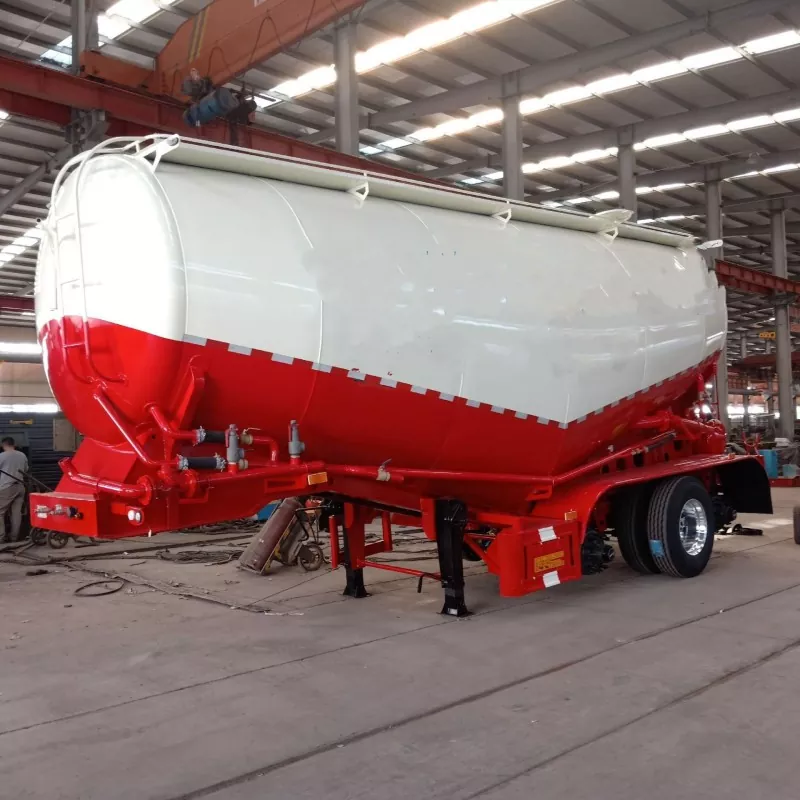

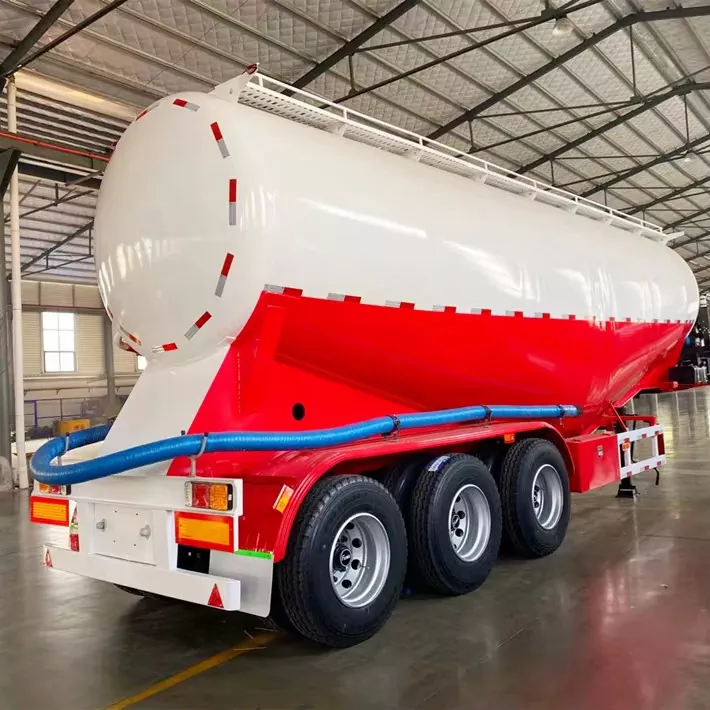

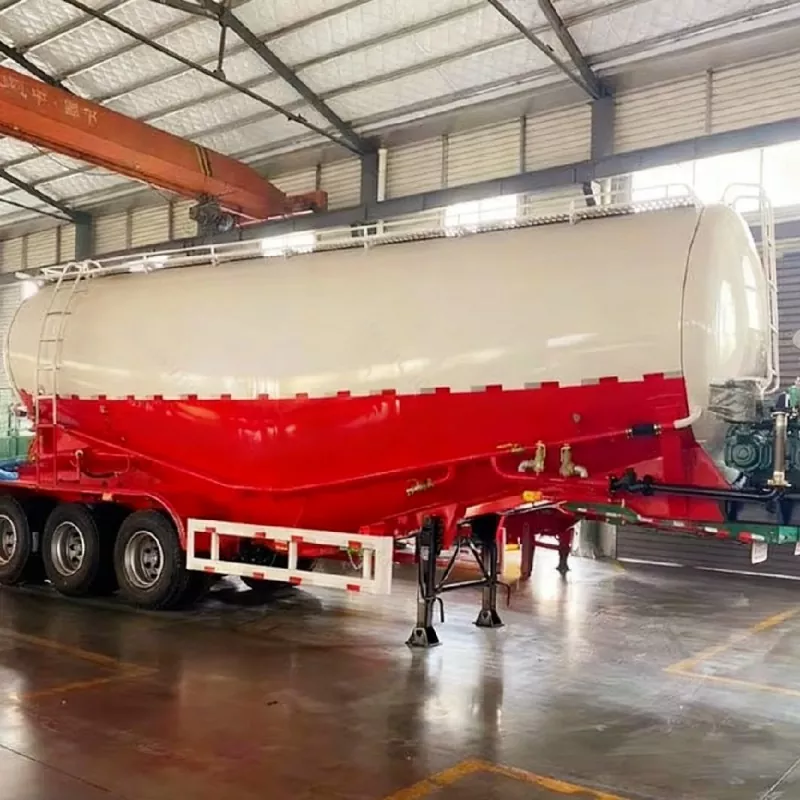

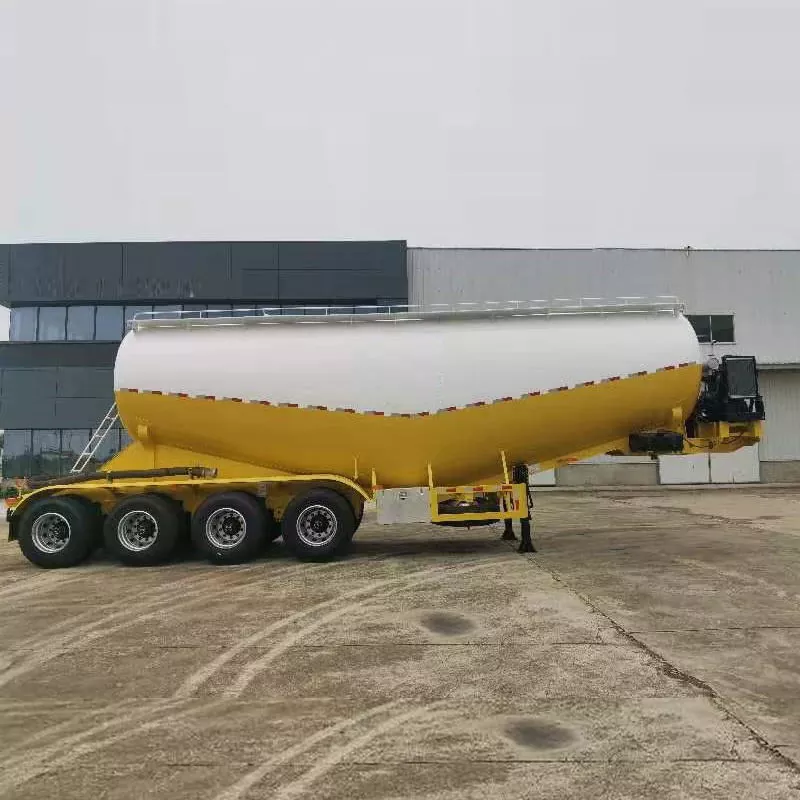

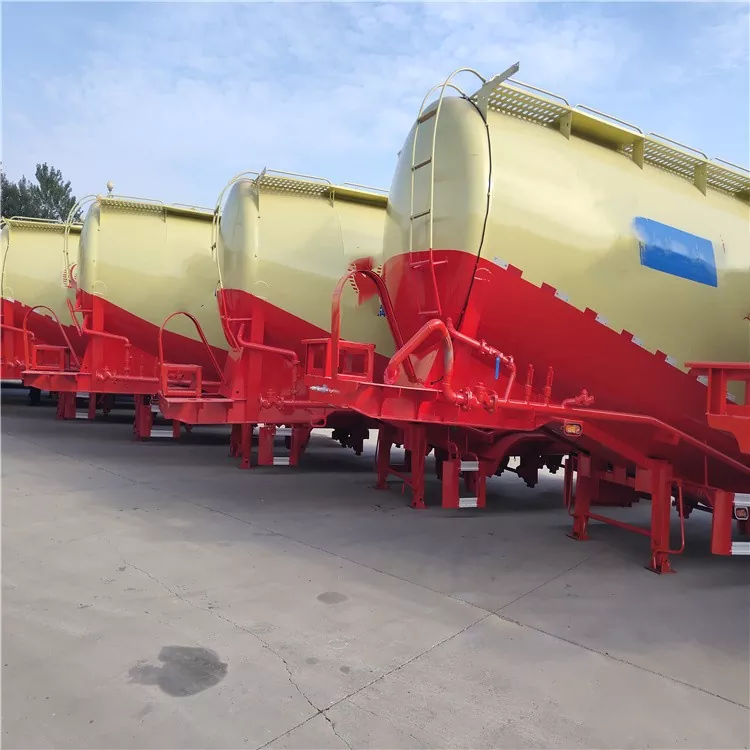

Vertical Powder Tank Semi-Trailer

JinFeng China vertical powder tank semi-trailer is professionally manufactured to meet global dry bulk transportation standards, focusing on high-efficiencybulk cement and dry powder delivery. The entire tank is made of high-strength wear-resistant steel plates. The optimized large-angle cone structure perfectly fits the natural repose angle of powdery materials, ensuring smooth discharging without blockage and improving overall operation fluency.

With optional 35CBM–63CBM tank volumes, the trailer covers multiple transportation scenarios and load requirements. It is suitable for diverse dry loose powders such as bulk cement, fly ash, lime powder, alumina powder and industrial mineral powder. Equipped with a high-performance matched air compressor and optimized fluidization pipeline system, it delivers a stable unloading speed of 1.2–1.3 tons per minute, with a material residual rate controlled below 0.3%. This design greatly reduces material waste and improves daily transportation volume and economic benefits.

The fully enclosed sealed tank structure isolates rainwater, humid air and external dust, keeping internal powder materials dry and qualified in long-haul and cross-regional transportation. The trailer adopts a heavy-duty three-axle chassis, supporting optional international mainstream BPW and FUWA brand axles, paired with a high-sensitivity stable braking system. It features strong load-bearing capacity and excellent driving stability, adapting to various complex road conditions worldwide. Customization on tank material, capacity, body color and internal structure is available to satisfy personalized demands for cement plants, mixing stations and large-scale construction projects.

Core Advantages

High Unloading Efficiency & Ultra-Low Residue : Upgraded cone and fluidized bed structure realizes uniform and fast powder discharging. The residual rate is controlled below 0.3%, effectively reducing material waste, shortening working hours and maximizing single-vehicle transportation efficiency.

Reinforced Vertical Tank Structure : The vertical tank adopts high-strength steel and reinforced ring no-gasket technology, improving overall structural rigidity and impact resistance. The integrated fully sealed design achieves zero leakage and perfect moisture-proof performance for long-distance bulk powder transport.

Wide Application & Full Customization : Multiple 35CBM–63CBM tank specifications are available. Carbon steel, stainless steel and aluminum alloy tank materials are optional to adapt different powder materials, load standards and regional traffic regulations.

Low Operation Cost & Easy Maintenance : All key accessories comply with international universal standards, featuring easy replacement and low maintenance cost. The optimized lightweight body design reduces fuel consumption and effectively prolongs the trailer’s service life.

Factory Direct Sales & Global After-Sales Service : As a professional bulk trailer manufacturer, JinFeng China provides 100% factory direct supply with competitive prices and no middleman markup. All trailers pass strict quality inspection and have complete export qualifications. We offer 24/7 global technical support and reliable after-sales guarantee.

Frequently Asked Questions

Q1: What bulk materials can this vertical powder tank semi-trailer transport?

A1: It is mainly used for bulk cement transportation . It also supports the transportation of fly ash, lime powder, mineral powder, alumina powder and other dry bulk powdery materials, serving construction, infrastructure and chemical industry logistics worldwide.

Q2: Can I customize the tank capacity and tank material?

A2: Yes, full customization is supported. The tank capacity ranges from 35CBM to 63CBM. Customers can choose carbon steel, stainless steel or aluminum alloy tank materials according to material characteristics, anti-corrosion demands and lightweight requirements.

Q3: What are the official unloading speed and residual rate data?

A3: Equipped with a standard high-efficiency pneumatic unloading system, the stable unloading speed is 1.2–1.3 tons per minute, and the material residual rate is ≤0.3%, which greatly reduces material loss and improves long-term operation profits.

Q4: What axle and suspension configurations are optional?

A4: International mainstream BPW and FUWA brand axles are optional. Both mechanical suspension and air suspension configurations are available to adapt to different road conditions and heavy-load transportation needs, ensuring stable and safe driving.

Q5: What is the official purchasing process and delivery cycle?

A5: The standard process is: confirm product configuration → sign formal sales contract → arrange production after receiving deposit. Standard configured trailers take 15–30 working days. Customized models support flexible delivery cycles. We provide standardized export packaging and global delivery services.

Q6: What after-sales warranty and technical support can you provide?

A6: We provide original factory warranty for all core components. Free maintenance and part replacement are available for non-human damage within the warranty period. Our professional team provides 24/7 online remote technical support to solve equipment operation problems in real time.
